全自動表類檢定儀 Optimar 100 BV
全自動表類檢定儀 Optimar 100 BV

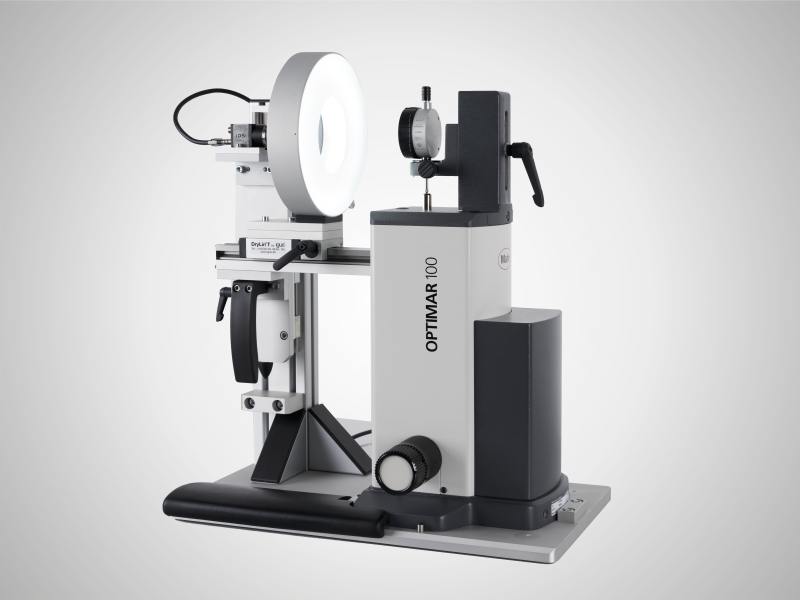

OPTIMAR 100 with image processing is the most cost-effective test station for the partially or fully automated testing of dial indicators, dial comparators and test indicators. The retrofit kit for image processing enables you to complete your motorized dial indicator test device with the possibility of a fully automatic reading of the displayed values of the test objects (pointer or numeric display) by camera and image processing, which makes the testing process considerably easier.

  • Easy to use
  • Quick image processing due to USB 3.0-camera
  • Compact design
  • Digital digit recognition
  • Steady LED lighting which does not require daylight
  • No interface cable necessary
  • During the automated testing process, the released capacities of the operator can be used for other working tasks.
  • 技術數據
  • 應用
  • 附件
  • 貨運

數字增量 [μm]

0,02

測量不確定性 MPEE1 (L in mm) [μm]

≤ (0,2 + L/250)

質量 [kg]

16

  • calibration of dial indicators, dial test indicators and dial comparators
  • The QMSOFT® software system controls the dial indicator test device Optimar 100 and processes the camera image (pointer or numeric display of the test object) and the reference measuring values of the dial indicator test device Optimar 100; it also performs all the subsequent processes related to gauge management.
  • The output of the inspection results are numerical data lists and graphics showing the deviation course. Tolerance excesses are marked and identified.
  • Support the inspec-tion of this gauges according to the worldwide mostly used standards.

Retrofit kit for Optimar 100 dial indicator test device with image processing consisting of:

  • base unit
  • USB 3.0 camera with lens incl. cable
  • Lighting unit complete with plug-in power supply
  • Software QMSOFT/QM-DIAL Image Processing
想要了解更多產品信息，聯系我們的客服人員　聯系電話：400-878-8028
